How do I determine the right bike size for me?

The recommended bike size based on rider height is as follows. We also suggest visiting an Amflow authorized store for an in-person fitting to determine the best size for you: Height 162-178 cm: Size M; Height 170-185 cm: Size L; Height 175-191 cm: Size XL; Height 185-201 cm: Size XXL.

What is the maximum load capacity of the frame?

The maximum load capacity is 125 kg, which includes the rider's weight, any additional items being carried, and the weight of equipment mounted onto the frame.

How do I adjust the bike's suspension for my weight?

The Amflow PL setup guide includes values and instructions tailored to your weight, as well as step-by-step instructions for adjusting suspension components. You can find the setup guide on the download page .

What's the weight of Amflow PL?

The following weights are for bare bikes (excluding pedals, tubeless): 1. Amflow PL Carbon Pro (600Wh) M size: 19.2 kg, L size: 19.3 kg, XL size: 19.4 kg, XXL size: 19.5 kg 2. Amflow PL Carbon Pro (800Wh) M size: 20.2 kg, L size: 20.3 kg, XL size: 20.4 kg, XXL size: 20.5 kg 3. Amflow PL Carbon (800Wh) M size: 21.1 kg, L size: 21.2 kg, XL size: 21.3 kg, XXL size: 21.4 kg * Weight may vary. Refer to the actual product.

What is the speed limit of Amflow PL?

Amflow PL automatically adjusts its maximum speed to comply with the regulations of the country/region you are in. Speed limits for major countries/regions are as follows: European Union: 25 kph United Kingdom: 25 kph United States: 32 kph (20 mph) China: 25 kph Australia: 25 kph

What motor parameters can I set in the Avinox Ride app?

1. Assistance: Adjusting the level of assistance involves modifying the assistance ratio of the drive unit. Increasing the assistance amplifies the assistance ratio, lessening the rider's pedal effort and making the ride easier. Conversely, reducing the assistance decreases the assistance ratio, increasing the rider's pedal effort and enhancing the rider's sense of participation in the ride. 2. Assistance Range: The assistance range refers to the range of the assistance ratio of the drive unit. The minimum value of the assistance range represents the assistance ratio for riding on flat surfaces, while the maximum value represents the assistance ratio for riding on steep slopes. Within the rider's set assistance range, the assistance ratio dynamically adjusts based on the road gradient and resistance. If the rider sets the minimum and maximum values to the same number, the output of the assistance becomes independent of the road gradient and resistance, and the assistance will always be maintained at the set value by the rider. 3. Max. Torque in Auto and Trail modes: The maximum torque represents the upper limit of the acceleration torque and also determines the upper limit of the bike's acceleration. Lowering the maximum torque slows down the bike's acceleration, while increasing it speeds up the acceleration. In this scenario, if one aims to achieve the same level of acceleration as with higher torque, additional effort from the rider is necessary. 4. Max. Torque in Eco and Turbo modes: The maximum torque represents the maximum assistance value of the drive unit. Increasing the maximum torque can lead to faster acceleration under similar road conditions and easier uphill riding. However, on surfaces with low traction, such as icy roads, the rear wheel is more prone to slipping. Conversely, reducing acceleration and uphill riding becomes more strenuous, but the bike is less prone to slipping on such surfaces. 5. Assisted Start: The Assisted Start determines the rate at which assistance increases from a pedal stop to pedal resumption. Boosting the Assisted Start facilitates easier incline starts and pedaling resumption after a stop on inclines. However, excessive Assisted Start can lead to instances of slipping and wheel lift during incline starts. Riders should prudently adjust this setting based on their abilities and road conditions. Reducing the Assisted Start diminishes acceleration during starts on flat ground. 6. Continued Assist: The Continued Assist determines the sensitivity of the assist response to the rider's pedaling force. Increasing the Continued Assist enhances the responsiveness of the assist, leading to a quicker increase when the rider applies more force and a faster decrease when less force is applied. Conversely, decreasing the Continued Assist reduces the sensitivity of the assist, resulting in a slower increase when more pedal force is applied and a slower decrease when less force is applied. 7. Motor Overrun Motor Overrun indicates the ongoing assistance provided for a duration after pedaling has ceased, gradually diminishing based on the assistance level at the point of stopping. Increasing the Motor Overrun prolongs this continued assistance. Motor Overrun is not continuously active. By assessing the bike's speed at the moment of pedal stopping, if significant acceleration is detected after ceasing pedaling, the overun assistance will be proactively disengaged to ensure safety. When riders need to navigate significant obstacles such as tree roots, we recommend initially applying a strong pedal stroke before stopping to enhance the intensity of the overrun assistance, thereby aiding the rider in overcoming the obstacle more effectively.

Can I still ride Amflow PL when the Drive Unit is turned off or if the battery runs out?

Yes. If the Drive Unit is off or the battery has run out, you can ride it like a non-electrical bicycle by pedaling.

Can I charge Amflow PL with third-party chargers?

To ensure battery safety, it is recommended to use the original charger. If the charger is lost, please contact a dealer for assistance.

Does Amflow PL support battery replacements for the Drive Unit?

Battery installation/replacement requires removing the Drive Unit. It is recommended to visit the nearest Amflow authorized store for assistance, or if there is no store nearby, please contact online customer service for support.

How many kilometers can a rider travel on a full battery charge?

The range of Amflow PL (like any eMTB or e-bike) depends on several factors, including environmental temperature, rider weight, pedaling cadence, the use of riding assist modes, and climbing elevation, etc. In Amflow's tests, a 75kg rider using the Amflow PL Pro (800Wh) in Auto mode could achieve approximately 60 km of mountain biking (or around 1440 m of climbing).

How long does it take to charge the battery?

It takes about 2.5 hours to fully charge an 800Wh battery or a 600Wh battery.

How do I store Amflow PL when I'm not using it?

It is recommended to store the bike indoors and maintain a certain level of charge in the lithium battery to prevent irreversible damage to the drive system from extreme weather and temperatures.

Does the battery need to be charged to 100% to ensure its health?

The battery is equipped with a battery health management system, which ensures battery health even when not fully charged.

Can I update the Avinox Ride app (used for Amflow PL) myself?

Yes, you can download the Avinox Ride app and pair it with your bike. When a new version is available, the app will send an update prompt. Simply follow the instructions to update.

When theft detection is enabled, which smartphones support pop-up notifications from the Avinox Ride app for alerts?

Currently, Avinox Ride app push notifications can only pop up on iPhone and Huawei phones, and phones that support the Google framework. Please stay tuned for further updates on other phone models.

What should I do if Amflow PL cannot be paired with my phone?

Please follow the troubleshooting steps based on the error message: 1. If the bike is already bound to another account: Solution: Contact the person who bound the bike to unbind it, then you can bind it again. 2. If the device cannot be found: Solution 1: Check the status on the pairing QR code page, which displays the current connection status of the bike, including the model and account name of the connected phone. If it shows Connected, it means the bike is connected to the phone's Bluetooth, and you need to find that phone and unpair it. Solution 2: Check if your phone's Bluetooth is already paired with the bike. If so, unpair it and try again.

What should I do if Amflow PL and the Wireless Controllers fail to pair?

Press and hold both buttons on either the Right or Left Wireless Controller for five seconds until the indicator light flashes rapidly. Then, attempt to re-pair.

What is the most extreme environment or operating condition that is suitable for Amflow PL to be used/ridden?

Amflow PL meets ASTM4 standards and can be used on both paved and unpaved surfaces. With the fork and rear shock air pressure set to 25-30% sag, and properly tuned, it can handle a maximum load of 125 kg, a maximum speed of 40 kph, and a maximum drop height of 120 cm.

Is it normal for Amflow PL's Control Display to feel warm or hot to the touch when in use?

Yes, it is normal. The Control Display and GPS module generate heat, and the Control Display absorbs sunlight, so it is normal for the Control Display temperature to rise and, accordingly, for it to feel warm to the touch when in use. Amflow PL's Control Display is equipped with a temperature sensor beneath the screen; if an abnormal screen temperature is detected, an error code will be displayed on the screen and an alarm will sound.

Can the speed limit on Amflow PL be removed?

No. The maximum speed should comply with the regulations of the country/region where it is being used. Amflow does not provide a method to remove the speed limit.

What is the operating temperature of Amflow PL?

The normal operating temperature is -10° to 40° C.

Can I control Amflow PL via 4G when it's powered off?

When Amflow PL is off, you can use the Avinox Ride app over a 4G connection to check its battery level and location. If the bike's location is abnormal, you will receive a notification from the Avinox Ride app and can choose to remotely authorize unlocking or maintain the locked state and silence the alarm. Features related to 4G network communication require the additional purchase of a SIM card and are not available during data roaming.

What do the different light colors on the charger indicate about the battery's status?

Yellow light indicates standby, red light means charging, and green light signifies a full charge.

What is the maximum operating altitude of Amflow PL?

It is suggested to stay below 5000 m.

What type of crank interface does Amflow PL's Drive Unit use?

It uses an ISIS interface. It is recommended to use the official crank for optimal compatibility.

How does Amflow PL connect to a 4G network?

First, prepare a local Nano 4G SIM card. Remove the Amflow PL Control Display, install the SIM card behind the screen, and then you can connect to the network.

How much data does Amflow PL consume monthly when connected to a 4G network?

Remote control enabled: approximately 200 MB per month Ride data upload enabled: approximately 200 MB per month.

What type of battery do the Wireless Controllers use? How long do the batteries last?

Each Wireless Controller uses a CR1620 battery. Under normal usage, the battery life is approximately one year.

Can I control Amflow PL with just one Wireless Controller?

Yes. Amflow PL can be used with two, one, or zero Wireless Controllers.

What is the maximum power of the Drive Unit?

The Drive Unit has a rated power of 250 W and a peak power of 1000 W.

Does Amflow PL have a hub-drive or a mid-drive motor?

Amflow PL uses a mid-drive motor.

Which heart rate monitors are compatible with Amflow PL?

We currently recommend the following models: iGPSPORT HR70 Scosche Rhythm 24 Myzone MZ-1 XOSS X2 Pro Polar H9

How to use the SmoothShift feature on Amflow PL Carbon?

When your bike is equipped with the SRAM Eagle Transmission, SmoothShift automatically detects gear changes and the drive unit assists the freewheel in completing the shift, delivering a seamless shifting experience. To use SmoothShift, please ensure: 1. Your bike's firmware is updated to V00.11.03.04 or later (update via the Avinox Ride app if needed). 2. The bike is equipped with the SRAM Eagle Transmission. 3. The SRAM Eagle Transmission rear derailleur is powered via the SRAM AXS power cable. For cable availability, consult your local SRAM dealer, an authorized Amflow dealer, or Amflow online support. 4. SmoothShift is enabled on the Control Display. For your safety, disable this feature and set motor assistance to OFF during maintenance or non-riding situations.

What is the maximum customizable power output of the Amflow PL Carbon?

With firmware V00.11.03.04, riders can choose to adjust to 1000 watts of peak power in Auto, Trail, and Turbo modes. Please comply with local laws and regulations when using it.

Does Amflow PL support user modifications to the Drive Unit (motor/battery/sensors)?

No. The Drive Unit must use official Avinox components. Any modifications to the drive system will void the warranty and may violate legal requirements. If parts are damaged, please contact customer service to purchase spare parts.

Does Amflow PL support replacement shifting systems from other brands?

Yes. Amflow PL supports both electronic and mechanical shifting. It is recommended to use a shifting system that meets the requirements for eMTB use. BCD104 chainrings can be used.

What are the installation requirements for the seatpost?

Any 31.6mm-diameter dropper seatpost can be installed. Please refer to the Amflow specs page for installation depth.

What are the dimensions and bearing specifications for the headset?

The dimensions are 40x52x7 mm, with 45deg bearings. For replacement purchasing options, please contact us or Amflow customer service.

What are the bearing models for the various pivots on the frame?

The two main pivot bearings are model 6901, located above the Drive Unit. The remaining 12 pivot bearings are model 6801.

How do I choose the specifications for the front and rear tires?

The front wheel can accommodate up to a 29-inch diameter and 2.8-inch tire width; the rear wheel can accommodate up to a 29-inch diameter and 2.6-inch tire width. We recommend using Amflow PL's matching tires: 2.5 inches wide for the front and 2.4 inches wide for the rear.

Does Amflow PL support the installation of a 27.5-inch rear wheel for a mullet setup?

Yes, Amflow PL is compatible with both 27.5-inch and 29-inch rear wheels. Users need to adjust the four-bar linkage flip chips and set the wheel size in the app to ensure accurate speed calculation. Additionally, installing a 27.5-inch rear wheel will result in changes to geometry.

How often do I service and maintain the fork and rear shock of Amflow PL?

For detailed information on servicing and maintenance, please refer to the FOX official website. FOX provides maintenance for the fork and rear shock. Here are some suggestions from Amflow for using the shock absorbers: 1. Set the sag before each ride. 2. Adjust the rebound before each ride. 3. Clean the shock absorbers after each ride. 4. Service the air chamber after every 50 hours of riding. 5. Reapply lubricant to the aluminum alloy shock pivot after every 50 hours of riding. 6. Take your fork/shock to a FOX dealer for inspection and maintenance after 150 hours of riding (or once annually).

What kind of rear shocks can be installed on Amflow PL?

The frame is compatible with 185×55mm trunnion-mount rear shocks. The original rear shock has been fine-tuned for internal damping according to Amflow PL's four-bar linkage leverage curve. It is recommended to use the original rear shock or a shock absorber of the same model with the same damping. If you plan to install a different rear shock model, please ensure that it does not interfere with the frame during operation. The following rear shock models have been tested and are compatible with Amflow PL: Ohlins TTX2Air 185x55 SRAM RockShox Deluxe Select SRAM RockShox Deluxe Select+ SRAM RockShox Deluxe Ultra SRAM Rockshox Super Deluxe Base SRAM RockShox Super Deluxe Select SRAM RockShox Super Deluxe Select+ SRAM RockShox Super Deluxe Ultimate

What maintenance does Amflow PL require?

Due to natural wear and tear of the components, Amflow PL requires maintenance. Here is how to extend the lifespan and optimize performance for different parts: 1. Shock absorbers: Set the air pressure and adjust the compression and rebound settings according to the riding conditions before each ride. Clean the shock absorbers after each ride. Service the air chamber and reapply lubricant to the aluminum alloy shock pivot after every 50 hours of riding. Take your fork/shock to a FOX dealer for inspection and maintenance after every 150 hours of riding (or once annually). 2. Bike chain: Always clean the chain, remove dirt, and re-lubricate. A well-maintained chain should be replaced after about 1000 kilometers of riding to prevent excessive wear on the chainrings. Use a dedicated chain checker to determine whether or not the chain requires replacement. 3. Crankset, chainrings, and cassette: The wear on these components largely depends on riding style, maintenance, and the environment. It is recommended to service them at an authorized store every six months. 4. Brake fluid: Brake fluid should be replaced annually to ensure excellent brake performance. 5. Rotors: Keep the rotors clean and free of dirt. Do not touch them with your hands, as the natural oils on fingers and hands can negatively affect brake pad performance. Clean promptly after riding on muddy roads. Dirty brake pads will wear out more quickly and affect braking performance, potentially causing significant noise when braking. 6. Pedals: Lubricate the pedal threads thoroughly before installation to reduce noise. 7. Grips: Grips are coated with rubber. If the rubber becomes porous or greasy over time or after exposure to the sun, it is recommended to replace them with new grips. 8. Wheelset: Wheelset should not have any vertical or lateral wobble. If you notice the wheelset has been impacted, you can go to a professional bike shop to adjust the spoke tension to correct any offset caused by impact. 9. Tires: Tires should always have sufficient tread for adequate grip on roads or trails. If you find sidewall damage when inspecting the tires, replace them promptly.

Does Amflow PL support converting the wheelset to a tubeless setup?

Amflow PL comes with tubes, but both the wheelset and tires are compatible with a tubeless setup. You can easily convert to tubeless using a tubeless valve and sealant.

How many headset spacers can be installed on an Amflow PL?

There is no limit to the number of spacers. However, it is recommended to use no more than three, all installed below the stem.

Does Amflow PL support coil shocks?

Amflow PL's progressive leverage ratio design can work well with coil shocks, but you need to confirm with the shock manufacturer whether the product is compatible with yoke linkage. The yoke connecting to the rear shock is 70.18 mm. Providing this data to the shock manufacturer to check if their product is compatible with Amflow PL. Here are some known compatible coil shock models for Amflow PL for your reference: - Ohlins TTX22m.2 - 2023 Super Deluxe Coil and Deluxe Coil - X-FUSION H3C - Formula MOD (yoke mount version)

Can I use a fork with longer travel on Amflow PL?

The geometry of the Amflow PL is designed around a 160mm-travel fork. Testing has shown that it can also be fitted with a 170mm-travel fork. However, this will result in a slacker head tube angle (changing from 64.5deg to 64.1deg) and seat tube angle (changing from 77deg to 76.6deg), as well as an increase in bottom bracket height (from 345 mm to 348.8 mm). Please consider whether a replacement is necessary based on your actual riding needs. If you plan to install a different fork model, please ensure that it does not interfere with the frame during operation.

Can the Avinox front light be used independently?

No. The Avinox front light is an integrated part of the bicycle system, powered by the main vehicle battery. It has no built-in power source and cannot be removed for independent use.

What should I do if the Avinox front light does not turn on or malfunctions?

Please follow these troubleshooting steps: 1. Verify that you have turned on the light according to the user manual. 2. Ensure the Control Display firmware is updated to the latest version. 3. Check that the light's cable connections are secure and free of looseness. If the issue persists after these checks, contact Amflow's official after-sales service for assistance.

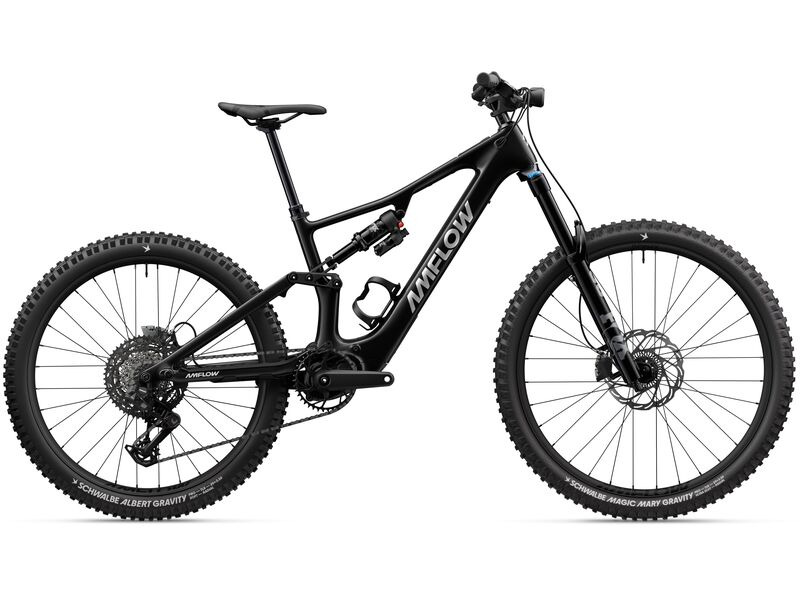

AMFLOW PX Carbon 2027

Ordering Information

Demand is very high for the Amflow PX Carbon Pro. Any bikes that come into free stock usually sell immediately. Availability for bikes listed as In Store Now is as follows:

Medium: 2 available today

Large: 2 available today

XL:1 Week Pre-Order

XXL:1 Week Pre-Order

£6499.00

Options In Store Now

Cycle to Work Order: Please find the bike you’re looking for on our website and add this to your basket.
Select Checkout Now
Agree to the T&C’s and select ‘Place Order’
Then click the cycle2work option at the top and checkout. (This doesn't take any money)
Please make sure your voucher is allocated to our shop.
Once you have checked out please email a copy of your voucher to info@leisurewheels.co.uk

Credit Facilities available on this product - Click for more details and payment examples

Finance* from £199.82 per month

*subject to status, minimum spend applies

See info below

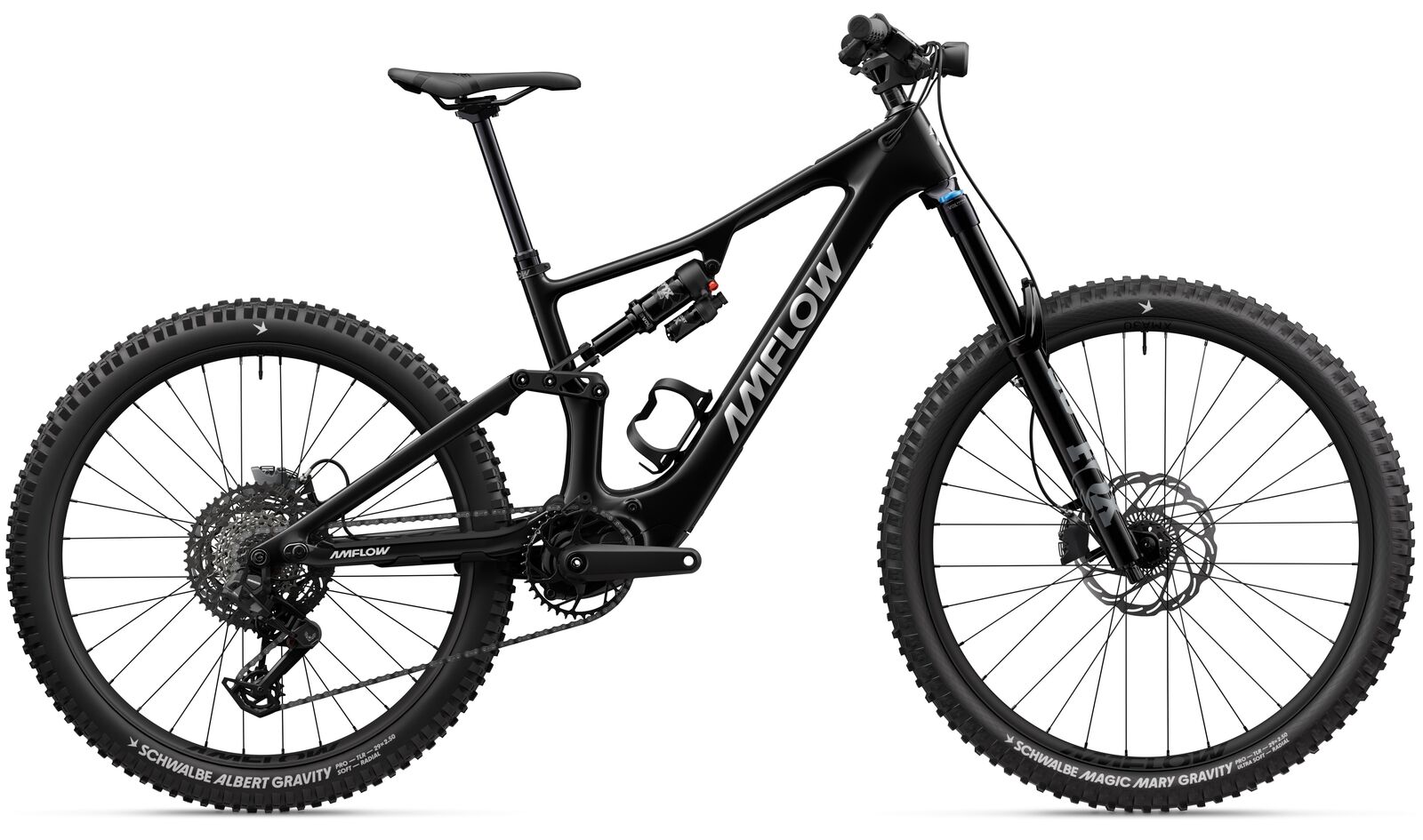

Amflow PX - Carbon Electric Mountain Bike (2027)

Amflow PX Carbon and Amflow PX Carbon Pro

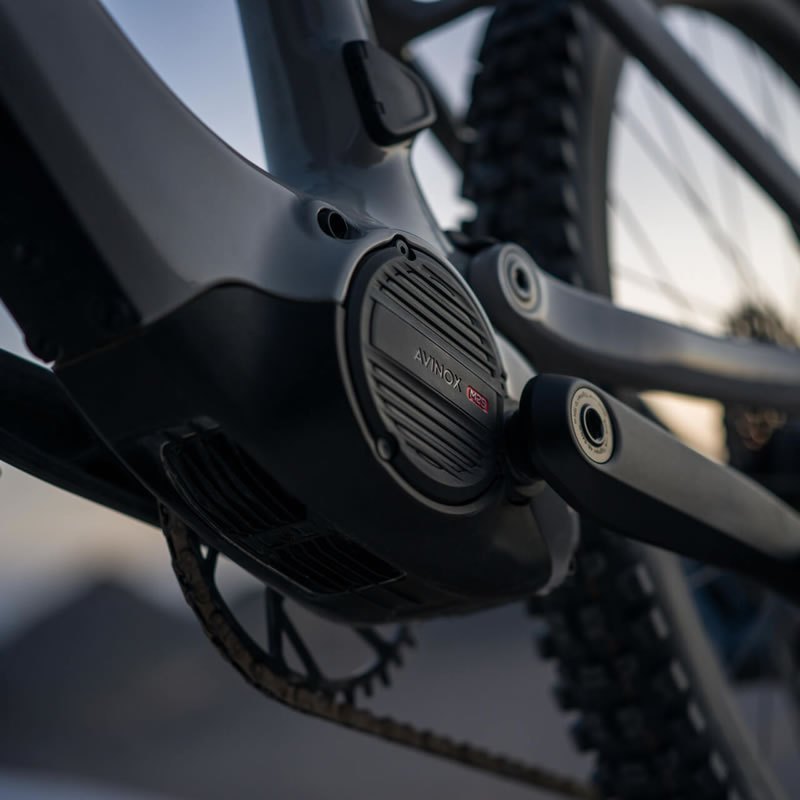

Drive Unit.

The Avinox M2S Drive Unit features flat wire winding and a compound planetary gearset.

It delivers 1500W [3] peak power and 150Nm [3] max torque while maintaining noise levels as low as 45dBA [4], achieving a remarkable balance of silence and performance.

Control Display

A 2-inch full-color OLED touchscreen is integrated directly into the frame.

It displays riding metrics and estimated range in real-time, allowing quick setup adjustments with a simple swipe.

Amflow PX Carbon and Amflow PX Carbon Pro Frames

Amflow FAQ

Dimensions

How do I determine the right bike size for me?: The recommended bike size based on rider height is as follows. We also suggest visiting an Amflow authorized store for an in-person fitting to determine the best size for you: Height 162-178 cm: Size M; Height 170-185 cm: Size L; Height 175-191 cm: Size XL; Height 185-201 cm: Size XXL.
What is the maximum load capacity of the frame?: The maximum load capacity is 125 kg, which includes the rider's weight, any additional items being carried, and the weight of equipment mounted onto the frame.
How do I adjust the bike's suspension for my weight?: The Amflow PL setup guide includes values and instructions tailored to your weight, as well as step-by-step instructions for adjusting suspension components. You can find the setup guide on the download page.
What's the weight of Amflow PL?: The following weights are for bare bikes (excluding pedals, tubeless): 1. Amflow PL Carbon Pro (600Wh) M size: 19.2 kg, L size: 19.3 kg, XL size: 19.4 kg, XXL size: 19.5 kg 2. Amflow PL Carbon Pro (800Wh) M size: 20.2 kg, L size: 20.3 kg, XL size: 20.4 kg, XXL size: 20.5 kg 3. Amflow PL Carbon (800Wh) M size: 21.1 kg, L size: 21.2 kg, XL size: 21.3 kg, XXL size: 21.4 kg * Weight may vary. Refer to the actual product.

Drive System

What is the speed limit of Amflow PL?: Amflow PL automatically adjusts its maximum speed to comply with the regulations of the country/region you are in. Speed limits for major countries/regions are as follows:
European Union: 25 kph
United Kingdom: 25 kph
United States: 32 kph (20 mph)
China: 25 kph
Australia: 25 kph
What motor parameters can I set in the Avinox Ride app?: 1. Assistance:
Adjusting the level of assistance involves modifying the assistance ratio of the drive unit. Increasing the assistance amplifies the assistance ratio, lessening the rider's pedal effort and making the ride easier. Conversely, reducing the assistance decreases the assistance ratio, increasing the rider's pedal effort and enhancing the rider's sense of participation in the ride.

2. Assistance Range:
The assistance range refers to the range of the assistance ratio of the drive unit. The minimum value of the assistance range represents the assistance ratio for riding on flat surfaces, while the maximum value represents the assistance ratio for riding on steep slopes. Within the rider's set assistance range, the assistance ratio dynamically adjusts based on the road gradient and resistance. If the rider sets the minimum and maximum values to the same number, the output of the assistance becomes independent of the road gradient and resistance, and the assistance will always be maintained at the set value by the rider.

3. Max. Torque in Auto and Trail modes:
The maximum torque represents the upper limit of the acceleration torque and also determines the upper limit of the bike's acceleration. Lowering the maximum torque slows down the bike's acceleration, while increasing it speeds up the acceleration. In this scenario, if one aims to achieve the same level of acceleration as with higher torque, additional effort from the rider is necessary.

4. Max. Torque in Eco and Turbo modes:
The maximum torque represents the maximum assistance value of the drive unit. Increasing the maximum torque can lead to faster acceleration under similar road conditions and easier uphill riding. However, on surfaces with low traction, such as icy roads, the rear wheel is more prone to slipping. Conversely, reducing acceleration and uphill riding becomes more strenuous, but the bike is less prone to slipping on such surfaces.

5. Assisted Start:
The Assisted Start determines the rate at which assistance increases from a pedal stop to pedal resumption. Boosting the Assisted Start facilitates easier incline starts and pedaling resumption after a stop on inclines. However, excessive Assisted Start can lead to instances of slipping and wheel lift during incline starts. Riders should prudently adjust this setting based on their abilities and road conditions. Reducing the Assisted Start diminishes acceleration during starts on flat ground.

6. Continued Assist:
The Continued Assist determines the sensitivity of the assist response to the rider's pedaling force. Increasing the Continued Assist enhances the responsiveness of the assist, leading to a quicker increase when the rider applies more force and a faster decrease when less force is applied. Conversely, decreasing the Continued Assist reduces the sensitivity of the assist, resulting in a slower increase when more pedal force is applied and a slower decrease when less force is applied.

7. Motor Overrun
Motor Overrun indicates the ongoing assistance provided for a duration after pedaling has ceased, gradually diminishing based on the assistance level at the point of stopping. Increasing the Motor Overrun prolongs this continued assistance. Motor Overrun is not continuously active. By assessing the bike's speed at the moment of pedal stopping, if significant acceleration is detected after ceasing pedaling, the overun assistance will be proactively disengaged to ensure safety. When riders need to navigate significant obstacles such as tree roots, we recommend initially applying a strong pedal stroke before stopping to enhance the intensity of the overrun assistance, thereby aiding the rider in overcoming the obstacle more effectively.
Can I still ride Amflow PL when the Drive Unit is turned off or if the battery runs out?: Yes. If the Drive Unit is off or the battery has run out, you can ride it like a non-electrical bicycle by pedaling.
Can I charge Amflow PL with third-party chargers?: To ensure battery safety, it is recommended to use the original charger. If the charger is lost, please contact a dealer for assistance.
Does Amflow PL support battery replacements for the Drive Unit?: Battery installation/replacement requires removing the Drive Unit. It is recommended to visit the nearest Amflow authorized store for assistance, or if there is no store nearby, please contact online customer service for support.
How many kilometers can a rider travel on a full battery charge?: The range of Amflow PL (like any eMTB or e-bike) depends on several factors, including environmental temperature, rider weight, pedaling cadence, the use of riding assist modes, and climbing elevation, etc.
In Amflow's tests, a 75kg rider using the Amflow PL Pro (800Wh) in Auto mode could achieve approximately 60 km of mountain biking (or around 1440 m of climbing).
How long does it take to charge the battery?: It takes about 2.5 hours to fully charge an 800Wh battery or a 600Wh battery.
How do I store Amflow PL when I'm not using it?: It is recommended to store the bike indoors and maintain a certain level of charge in the lithium battery to prevent irreversible damage to the drive system from extreme weather and temperatures.
Does the battery need to be charged to 100% to ensure its health?: The battery is equipped with a battery health management system, which ensures battery health even when not fully charged.
Can I update the Avinox Ride app (used for Amflow PL) myself?: Yes, you can download the Avinox Ride app and pair it with your bike. When a new version is available, the app will send an update prompt. Simply follow the instructions to update.
When theft detection is enabled, which smartphones support pop-up notifications from the Avinox Ride app for alerts?: Currently, Avinox Ride app push notifications can only pop up on iPhone and Huawei phones, and phones that support the Google framework. Please stay tuned for further updates on other phone models.
What should I do if Amflow PL cannot be paired with my phone?: Please follow the troubleshooting steps based on the error message:
1. If the bike is already bound to another account:
Solution: Contact the person who bound the bike to unbind it, then you can bind it again.
2. If the device cannot be found:
Solution 1: Check the status on the pairing QR code page, which displays the current connection status of the bike, including the model and account name of the connected phone. If it shows Connected, it means the bike is connected to the phone's Bluetooth, and you need to find that phone and unpair it.
Solution 2: Check if your phone's Bluetooth is already paired with the bike. If so, unpair it and try again.
What should I do if Amflow PL and the Wireless Controllers fail to pair?: Press and hold both buttons on either the Right or Left Wireless Controller for five seconds until the indicator light flashes rapidly. Then, attempt to re-pair.
What is the most extreme environment or operating condition that is suitable for Amflow PL to be used/ridden?: Amflow PL meets ASTM4 standards and can be used on both paved and unpaved surfaces. With the fork and rear shock air pressure set to 25-30% sag, and properly tuned, it can handle a maximum load of 125 kg, a maximum speed of 40 kph, and a maximum drop height of 120 cm.
Is it normal for Amflow PL's Control Display to feel warm or hot to the touch when in use?: Yes, it is normal. The Control Display and GPS module generate heat, and the Control Display absorbs sunlight, so it is normal for the Control Display temperature to rise and, accordingly, for it to feel warm to the touch when in use.
Amflow PL's Control Display is equipped with a temperature sensor beneath the screen; if an abnormal screen temperature is detected, an error code will be displayed on the screen and an alarm will sound.
Can the speed limit on Amflow PL be removed?: No. The maximum speed should comply with the regulations of the country/region where it is being used. Amflow does not provide a method to remove the speed limit.
What is the operating temperature of Amflow PL?: The normal operating temperature is -10° to 40° C.
Can I control Amflow PL via 4G when it's powered off?: When Amflow PL is off, you can use the Avinox Ride app over a 4G connection to check its battery level and location. If the bike's location is abnormal, you will receive a notification from the Avinox Ride app and can choose to remotely authorize unlocking or maintain the locked state and silence the alarm.

^{Features related to 4G network communication require the additional purchase of a SIM card and are not available during data roaming.}
What do the different light colors on the charger indicate about the battery's status?: Yellow light indicates standby, red light means charging, and green light signifies a full charge.
What is the charging temperature of the battery?: 0° to 40° C.
What is the maximum operating altitude of Amflow PL?: It is suggested to stay below 5000 m.
What type of crank interface does Amflow PL's Drive Unit use?: It uses an ISIS interface. It is recommended to use the official crank for optimal compatibility.
How does Amflow PL connect to a 4G network?: First, prepare a local Nano 4G SIM card.
Remove the Amflow PL Control Display, install the SIM card behind the screen, and then you can connect to the network.
How much data does Amflow PL consume monthly when connected to a 4G network?: Remote control enabled: approximately 200 MB per month
Ride data upload enabled: approximately 200 MB per month.
What type of battery do the Wireless Controllers use? How long do the batteries last?: Each Wireless Controller uses a CR1620 battery. Under normal usage, the battery life is approximately one year.
Can I control Amflow PL with just one Wireless Controller?: Yes. Amflow PL can be used with two, one, or zero Wireless Controllers.
What is the maximum power of the Drive Unit?: The Drive Unit has a rated power of 250 W and a peak power of 1000 W.
Does Amflow PL have a hub-drive or a mid-drive motor?: Amflow PL uses a mid-drive motor.
Which heart rate monitors are compatible with Amflow PL?: We currently recommend the following models:
iGPSPORT HR70
Scosche Rhythm 24
Myzone MZ-1
XOSS X2 Pro
Polar H9
How to use the SmoothShift feature on Amflow PL Carbon?: When your bike is equipped with the SRAM Eagle Transmission, SmoothShift automatically detects gear changes and the drive unit assists the freewheel in completing the shift, delivering a seamless shifting experience.
To use SmoothShift, please ensure:
1. Your bike's firmware is updated to V00.11.03.04 or later (update via the Avinox Ride app if needed).
2. The bike is equipped with the SRAM Eagle Transmission.
3. The SRAM Eagle Transmission rear derailleur is powered via the SRAM AXS power cable. For cable availability, consult your local SRAM dealer, an authorized Amflow dealer, or Amflow online support.
4. SmoothShift is enabled on the Control Display. For your safety, disable this feature and set motor assistance to OFF during maintenance or non-riding situations.
What is the maximum customizable power output of the Amflow PL Carbon?: With firmware V00.11.03.04, riders can choose to adjust to 1000 watts of peak power in Auto, Trail, and Turbo modes. Please comply with local laws and regulations when using it.

Maintenance & Modification

Does Amflow PL support user modifications to the Drive Unit (motor/battery/sensors)?: No. The Drive Unit must use official Avinox components. Any modifications to the drive system will void the warranty and may violate legal requirements.
If parts are damaged, please contact customer service to purchase spare parts.
Does Amflow PL support replacement shifting systems from other brands?: Yes. Amflow PL supports both electronic and mechanical shifting.
It is recommended to use a shifting system that meets the requirements for eMTB use. BCD104 chainrings can be used.
What are the installation requirements for the seatpost?: Any 31.6mm-diameter dropper seatpost can be installed. Please refer to the Amflow specs page for installation depth.
What are the dimensions and bearing specifications for the headset?: The dimensions are 40x52x7 mm, with 45deg bearings.
For replacement purchasing options, please contact us or Amflow customer service.
What are the bearing models for the various pivots on the frame?: The two main pivot bearings are model 6901, located above the Drive Unit. The remaining 12 pivot bearings are model 6801.
How do I choose the specifications for the front and rear tires?: The front wheel can accommodate up to a 29-inch diameter and 2.8-inch tire width; the rear wheel can accommodate up to a 29-inch diameter and 2.6-inch tire width.
We recommend using Amflow PL's matching tires: 2.5 inches wide for the front and 2.4 inches wide for the rear.
Does Amflow PL support the installation of a 27.5-inch rear wheel for a mullet setup?: Yes, Amflow PL is compatible with both 27.5-inch and 29-inch rear wheels. Users need to adjust the four-bar linkage flip chips and set the wheel size in the app to ensure accurate speed calculation. Additionally, installing a 27.5-inch rear wheel will result in changes to geometry.
How often do I service and maintain the fork and rear shock of Amflow PL?: For detailed information on servicing and maintenance, please refer to the FOX official website. FOX provides maintenance for the fork and rear shock. Here are some suggestions from Amflow for using the shock absorbers:
1. Set the sag before each ride.
2. Adjust the rebound before each ride.
3. Clean the shock absorbers after each ride.
4. Service the air chamber after every 50 hours of riding.
5. Reapply lubricant to the aluminum alloy shock pivot after every 50 hours of riding.
6. Take your fork/shock to a FOX dealer for inspection and maintenance after 150 hours of riding (or once annually).
What kind of rear shocks can be installed on Amflow PL?: The frame is compatible with 185×55mm trunnion-mount rear shocks. The original rear shock has been fine-tuned for internal damping according to Amflow PL's four-bar linkage leverage curve.
It is recommended to use the original rear shock or a shock absorber of the same model with the same damping. If you plan to install a different rear shock model, please ensure that it does not interfere with the frame during operation.
The following rear shock models have been tested and are compatible with Amflow PL:
Ohlins TTX2Air 185x55
SRAM RockShox Deluxe Select
SRAM RockShox Deluxe Select+
SRAM RockShox Deluxe Ultra
SRAM Rockshox Super Deluxe Base
SRAM RockShox Super Deluxe Select
SRAM RockShox Super Deluxe Select+
SRAM RockShox Super Deluxe Ultimate
What maintenance does Amflow PL require?: Due to natural wear and tear of the components, Amflow PL requires maintenance. Here is how to extend the lifespan and optimize performance for different parts:

1. Shock absorbers: Set the air pressure and adjust the compression and rebound settings according to the riding conditions before each ride. Clean the shock absorbers after each ride. Service the air chamber and reapply lubricant to the aluminum alloy shock pivot after every 50 hours of riding. Take your fork/shock to a FOX dealer for inspection and maintenance after every 150 hours of riding (or once annually).

2. Bike chain: Always clean the chain, remove dirt, and re-lubricate. A well-maintained chain should be replaced after about 1000 kilometers of riding to prevent excessive wear on the chainrings. Use a dedicated chain checker to determine whether or not the chain requires replacement.

3. Crankset, chainrings, and cassette: The wear on these components largely depends on riding style, maintenance, and the environment. It is recommended to service them at an authorized store every six months.

4. Brake fluid: Brake fluid should be replaced annually to ensure excellent brake performance.

5. Rotors: Keep the rotors clean and free of dirt. Do not touch them with your hands, as the natural oils on fingers and hands can negatively affect brake pad performance. Clean promptly after riding on muddy roads. Dirty brake pads will wear out more quickly and affect braking performance, potentially causing significant noise when braking.

6. Pedals: Lubricate the pedal threads thoroughly before installation to reduce noise.

7. Grips: Grips are coated with rubber. If the rubber becomes porous or greasy over time or after exposure to the sun, it is recommended to replace them with new grips.

8. Wheelset: Wheelset should not have any vertical or lateral wobble. If you notice the wheelset has been impacted, you can go to a professional bike shop to adjust the spoke tension to correct any offset caused by impact.

9. Tires: Tires should always have sufficient tread for adequate grip on roads or trails. If you find sidewall damage when inspecting the tires, replace them promptly.
Does Amflow PL support converting the wheelset to a tubeless setup?: Amflow PL comes with tubes, but both the wheelset and tires are compatible with a tubeless setup. You can easily convert to tubeless using a tubeless valve and sealant.
How many headset spacers can be installed on an Amflow PL?: There is no limit to the number of spacers. However, it is recommended to use no more than three, all installed below the stem.
Does Amflow PL support coil shocks?: Amflow PL's progressive leverage ratio design can work well with coil shocks, but you need to confirm with the shock manufacturer whether the product is compatible with yoke linkage. The yoke connecting to the rear shock is 70.18 mm. Providing this data to the shock manufacturer to check if their product is compatible with Amflow PL.

Here are some known compatible coil shock models for Amflow PL for your reference:
- Ohlins TTX22m.2
- 2023 Super Deluxe Coil and Deluxe Coil
- X-FUSION H3C
- Formula MOD (yoke mount version)
Can I use a fork with longer travel on Amflow PL?: The geometry of the Amflow PL is designed around a 160mm-travel fork. Testing has shown that it can also be fitted with a 170mm-travel fork. However, this will result in a slacker head tube angle (changing from 64.5deg to 64.1deg) and seat tube angle (changing from 77deg to 76.6deg), as well as an increase in bottom bracket height (from 345 mm to 348.8 mm). Please consider whether a replacement is necessary based on your actual riding needs. If you plan to install a different fork model, please ensure that it does not interfere with the frame during operation.
Can the Avinox front light be used independently?: No. The Avinox front light is an integrated part of the bicycle system, powered by the main vehicle battery. It has no built-in power source and cannot be removed for independent use.
What should I do if the Avinox front light does not turn on or malfunctions?: Please follow these troubleshooting steps:
1. Verify that you have turned on the light according to the user manual.
2. Ensure the Control Display firmware is updated to the latest version.
3. Check that the light's cable connections are secure and free of looseness.

If the issue persists after these checks, contact Amflow's official after-sales service for assistance.
How should I maintain the Avinox front light for long-term performance?: Store the bicycle in a dry, well-ventilated indoor environment.
What precautions should I take when using the Avinox front light in rain or fog?: 1. Use high beam for better visibility when there are no oncoming vehicles or pedestrians. Switch to low beam in urban areas or when approaching oncoming traffic, in accordance with traffic regulations.
2. In rainy or foggy conditions, sudden temperature changes during high-power use may cause temporary lens fogging. This is a normal physical phenomenon with minimal impact on illumination. Turn off the light and leave it in a dry environment for a short period to clear the fog.

Transportation

How do I disassemble and pack an Amflow PL for transportation?: For transportation, please use the original packaging/box you received upon purchase and pack it as it was when first opened.
If the packaging/box is lost, you can purchase new transportation materials from the Amflow online store to safely transport your bike.
If you have any other questions, please visit the official Amflow website and fill out the service form to contact us. The Amflow customer service team will get in touch with you as soon as possible and provide assistance.

Riding Suggestions

What should riders check before each ride on an Amflow PL?: 1. Ensure the battery is adequately charged.
2. Check the thickness of the brake pads and rotors.
3. Inspect the tire pressure and wear on both the front and rear tires.
4. Check the screw torque at the main pivots of the frame.
5. Check the air pressure, rebound, and compression damping of both the fork and rear shock.
6. Examine the chain for wear.
7. If you are wearing non-cycling pants during the ride, please use leg straps to secure your pant legs. This will help prevent them from getting caught in the bike's moving parts, which could result in personal injury or damage to the bike.
What specific category of bicycles does Amflow PL belong to? Under what conditions is riding permitted?: All models in the Amflow PL series meet the Category 4 bicycle requirements outlined in ASTM F2043-13. This category not only covers the riding conditions of Categories 1, 2, and 3, but also includes suitability for technical downhill, trail, and uphill riding.

With the fork and rear shock air pressure set to 25-30% sag and properly tuned, Amflow PL can handle a maximum load of 125 kg, a maximum speed of 40 kph, and a maximum drop height of 122 cm. Please note that it is important to inspect the bike for any damage after each ride.

Model Year	2027
Options	M - 2 available today Phantom Black (Item# 42419 6937224140875) L - 2 available today Phantom Black (Item# 42420 6937224140813) XL - 2 month pre-order Phantom Black (Item# 42456 6937224140950) XXL - 1 week pre-order Phantom Black (Item# 42456 6937224140844)
Description	The Amflow PX Carbon is a high-performance trail e-MTB designed to deliver confidence, capability, and adaptability across a wide range of terrain. Built around a lightweight carbon frame and a proven component package, it offers an ideal balance of performance and value. Key Features 150Nm & 1500W, Smooth and Natural Significantly Reduced Motor Resistance, Ultimate Silence 40 Geometry Adjustment Combinations 700Wh High-Capacity Battery, 3x Fast Charging 20kg Class Sleek Body, Exquisite Elegance Smart Offline Navigation Enhanced Carbon Fiber Rigidity Safe and Reliable, Quality Assured Full carbon frame with advanced geometry adjustability FOX 36 Factory fork with GRIP X2 damper FOX Float X Factory rear shock SRAM X0 Eagle Transmission drivetrain Carbon mullet wheelset for reduced weight and increased stiffness Trail-Ready Performance With 160mm travel from FOX suspension and a progressive geometry platform, the PX Carbon is built to handle demanding trails while remaining composed and predictable. The mullet wheel setup enhances agility without compromising stability. Reliable Drivetrain & Power The SRAM S1000 Eagle Transmission delivers smooth, precise shifting under load, while the 700Wh Avinox battery ensures long-range capability. Combined with intuitive controls and a clean integrated system, this bike is built for all-day riding.
Frame	Amflow PX Carbon Frame, Phantom Black, 40 adjustable geometry configurations, compatible with 27.5" and 29" rear wheels
Rear Shock	FOX Float X Performance (MY 2027), 2-position lever, custom tune, LSR adjustment, 210? - 55mm, air shock
Motor	Avinox M2S Drive Unit: Nominal 130Nm, Peak 150Nm
Display	Avinox Screen, 2-inch OLED Control Display Avinox Wireless Controllers, right and left sides
Battery	Avinox Integrated Battery, 700Wh
Charger	Avinox Fast Charger, 12A/508W
Forks	FOX 36 Performance (MY 2027), 160mm travel, GRIP damper, Sweep/LSR adjustment, 15 - 110mm, 44mm offset
Rear Derailleur	SRAM S1000 Eagle Transmission Derailleur Avinox M2 Series Electronic Rear Derailleur Power Cable
Shifters	SRAM AXS Pod Controller
Chainset	Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) SRAM Eagle Transmission DM Chainring, 38T for Avinox
Chain	SRAM Eagle 70 Transmission Flattop Chain
Freewheel	SRAM XS-1270 Eagle Transmission Cassette, 10-52T
Stem	Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter
Handlebars	Amflow Enduro Alloy Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
Front Brake	Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers Magura Sensor Rotor (203mm, 2.5mm)
Rear Brake	Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers Magura Sensor Rotor (203mm, 2.5mm)
Brake Levers	Amflow Dropper Remote Lever Mounting Bracket
Wheelset	Amflow XMA-30 Mullet Version
Rims	F: Alloy, 29", 30mm inner width, 32H, tubeless ready R: Alloy, 27.5", 30mm inner width, 32H, tubeless ready
Front Hub	Alloy, 2 sealed bearings, 15? - 110mm thru-axle, 32H, 6-bolt
Rear Hub	Alloy, 4 sealed bearings, 12? - 148mm thru-axle, 32H, 6-bolt, 4 pawls, 36T, HG
Spokes	SAPIM E-Light
Tyres	F: Schwalbe Magic Mary, 29? - 2.5 Gravity Pro, Radial R: Schwalbe Albert, 27.5? - 2.5 Gravity Pro, Radial
Saddle	Amflow Mountain Saddle
Seatpost	Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm), M/L frame: 190mm, XL frame: 210mm, XXL frame: 230mm
Grips	Amflow Enduro Grip 2 Lock-on Grips
Accessories/Miscellaneous	Front light: Avinox Front Light Rear light: Rear Light Bottle cage: Amflow Bottle Cage Geometry systems: Three Geometry Adjustment Systems Dropper spacers: 5/10mm Dropper Post Travel Reducing Spacer Torque wrench: Included Frame protection: Clear Frame Protection Film Shock pump: Included Guide: Quick Start Guide SIM card: IoT Nano SIM Card

You might also consider...

HAIBIKE ALLMTN CF 11 TRN/IQ 2026

£8999.00

Offer £6289.00

CUBE Stereo Hybrid One77 Hpc At 800 2026

Key workers get 12% off full-priced bikes over £750 with code BLUELIGHT - " excludes other offers, finance & Cycle to Work.

£6499.00

CUBE Stereo Hybrid One77 Hpc At 800 2026

Key workers get 12% off full-priced bikes over £750 with code BLUELIGHT - " excludes other offers, finance & Cycle to Work.

£6499.00

CUBE Stereo Hybrid One44 Hpc At 800 2026

Key workers get 12% off full-priced bikes over £750 with code BLUELIGHT - " excludes other offers, finance & Cycle to Work.

£6499.00

Finance* from £199.82 per month

*subject to status, minimum spend applies

Click here for full details.

Viewing on a mobile? Flip to Landscape to see all info.

Finance Illustrations

Other finance options may be available to you at checkout. All finance is subject to status, minimum spend applies.

Lowest monthly payment	Low Rate Credit 36 Months (14.9% APR Representative) (Minimum goods total £1000.00)
Cash Price	£6499.00
Minimum Deposit	10%
Deposit to Pay	£649.90
Loan	£5849.10
Duration (Months)	36
36 Monthly Payments of	£199.82*
Cost of Credit	£1344.42
Rate of Interest (fixed)	14.9%
APR Representative	14.9% APR Representative
Total Amount Payable	£7843.42

Lowest borrowing cost	24 Months Interest Free Credit (0% APR Representative) (Minimum goods total £1500.00)
Cash Price	£6499.00
Minimum Deposit	10%
Deposit to Pay	£649.90
Loan	£5849.10
Duration (Months)	24
24 Monthly Payments of	£243.71*
Cost of Credit	£0.00
Rate of Interest (fixed)	0%
APR Representative	0% APR Representative
Total Amount Payable	£6499.00

*Final payment may be slightly higher or lower than quoted: this will be made clear in your loan documents prior to you signing the agreement

Note: Selecting other items in our site may affect which finance options are available to you. Add your preferred items to your basket and visit the checkout. You can see which options your selected products qualify for before giving us any personal details.

Leisure Wheels is a credit broker, not a lender and is authorised and regulated by the Financial Conduct Authority, (FRN 676062). We do not charge you for credit broking services.

Credit is provided by Novuna Personal Finance, a trading style of Mitsubishi HC Capital UK PLC, authorised and regulated by the Financial Conduct Authority. Financial Services Register no. 704348. The register can be accessed through http://www.fca.org.uk.

Credit subject to status, UK only 18+

Missed or late payments will result in fees and additional interest on your loan and can also affect your credit file and your ability to obtain credit in the future.

As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.

AMFLOW PX Carbon 2027

Ordering Information

Pricing

Amflow PX - Carbon Electric Mountain Bike (2027)

Drive Unit.

Control Display

Amflow FAQ

Key Features

Trail-Ready Performance

Reliable Drivetrain & Power

Finance Illustrations
